Accessories for Small Punch machines · EN 10371
GE 76

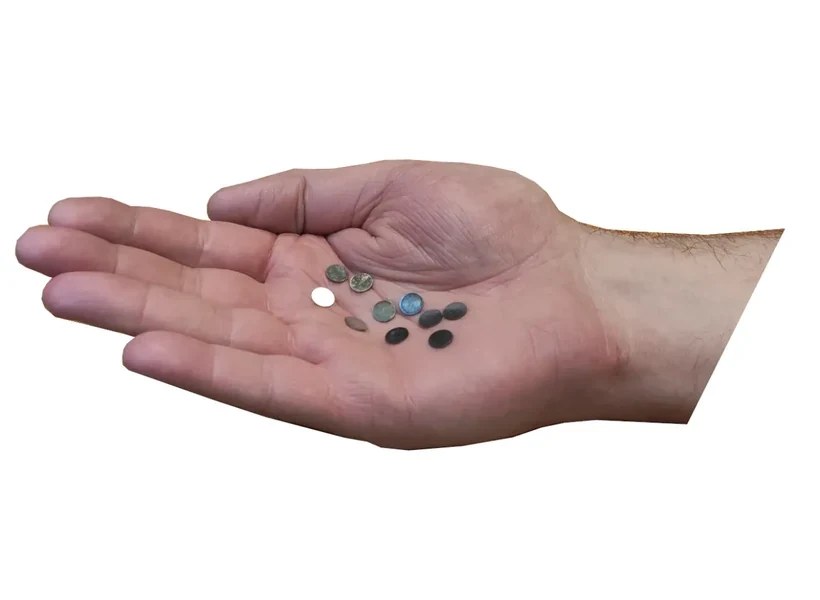

A Small Punch Test specimen ground to 0.5 ± 0.005 mm — in four steps.
A tool for precise specimen grinding to EN 10371. It works with an ordinary metallographic grinder or polisher and needs no special operator skill.
Where it sits in the specimen preparation chain
Technical parameters
Also suitable for other specimen sizes, for example 10 × 10 × 0.5 mm.
- Suitable for specimens
- Ø8 mm, thickness 0.5 mm
- Optional sizes
- e.g. 10 × 10 × 0.5 mm
- Final specimen size
- 0.5 ± 0.005 mm
- Tool dimensions
- Ø83 × 62 mm
- Weight
- 1,450 g
- Standard
- EN 10371
Why this particular tool
01
The tolerance the standard requires
Reaching a thickness of 0.5 ± 0.005 mm in four defined steps, exactly as EN 10371 prescribes.
02
Magnetic and non-magnetic materials
The tool handles both without changing any components.
03
Built to last
The working surfaces are highly wear-resistant and the materials used withstand a wet environment.
04
Anyone can use it
The final thickness is easy to calibrate and the tool needs no training to operate.

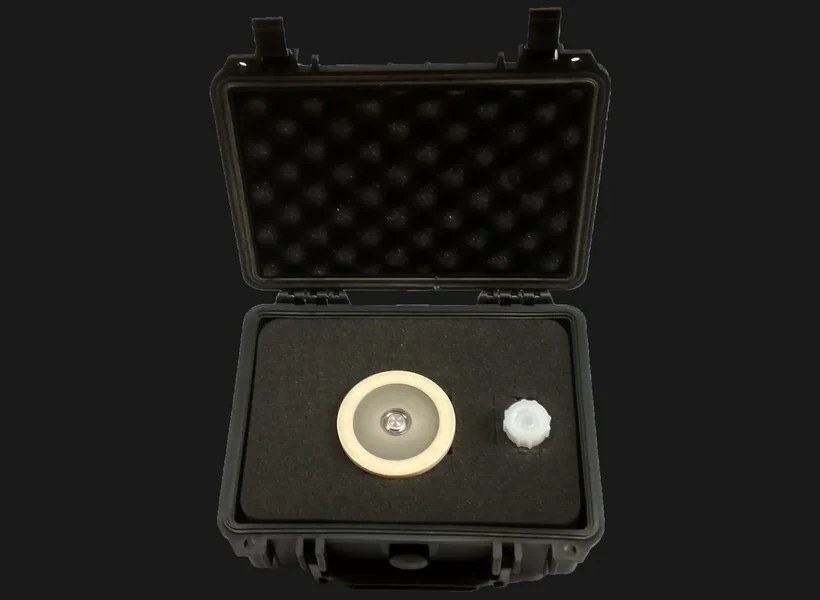

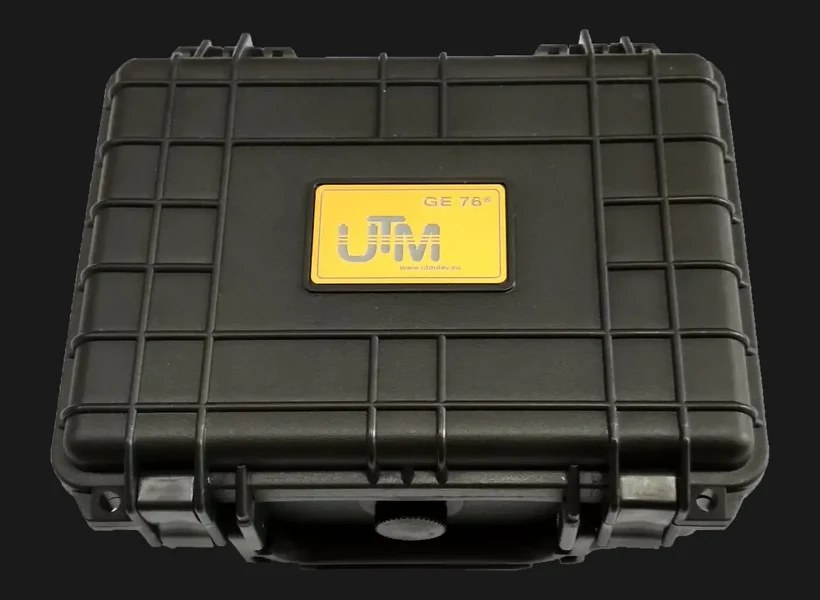

The tool in practice
Preparing specimens for your own machine?
GE 76 is supplied on its own or as a set with PT 8, with the SPC range and with TTS 190. Tell us which material and which machine you work with.
